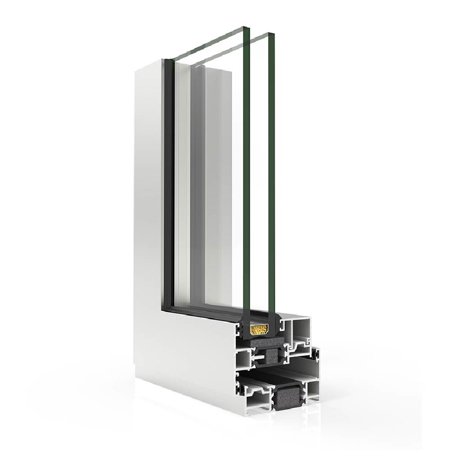

COR 3500 C16 ST Hinged Window and Door Systems

For pricing information please send a request.

Compatible with any standard 16 groove hardware in the market. This hinged system has a 2.13" frame depth and a thermal break zone of 0.94". It is presented as a versatile solution for mild climates.

Shipping: Free

est. delivery:

Description
Downloads

Description

Possibilities
» Security hardware
» Concealed hinges
» Accessibility

Technical Data

» Glazing
Max. 1.26"
Min. 1.06"

» Opening possibilities

Inward opening
Side hung
Tilt & turn
Bi-fold
Tilt & parallel
Bottom hung

Outward opening
Side hung
Top hung

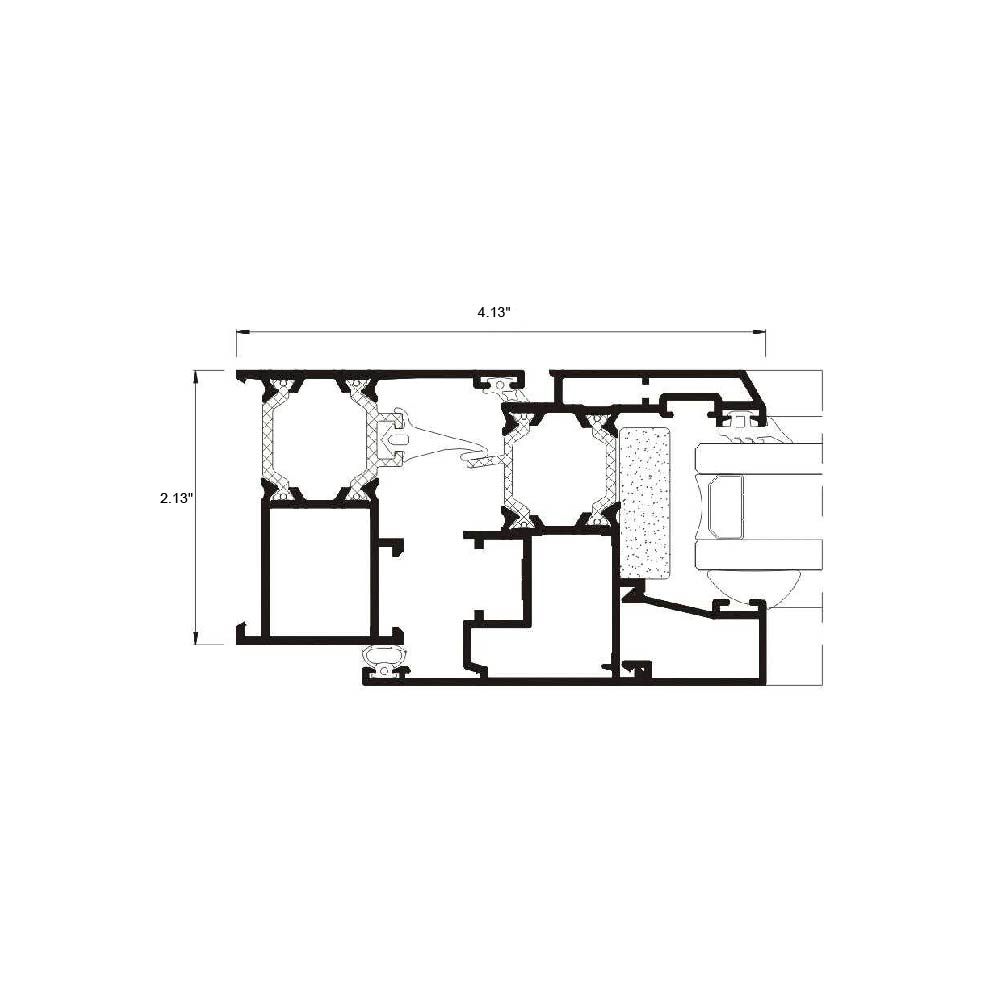

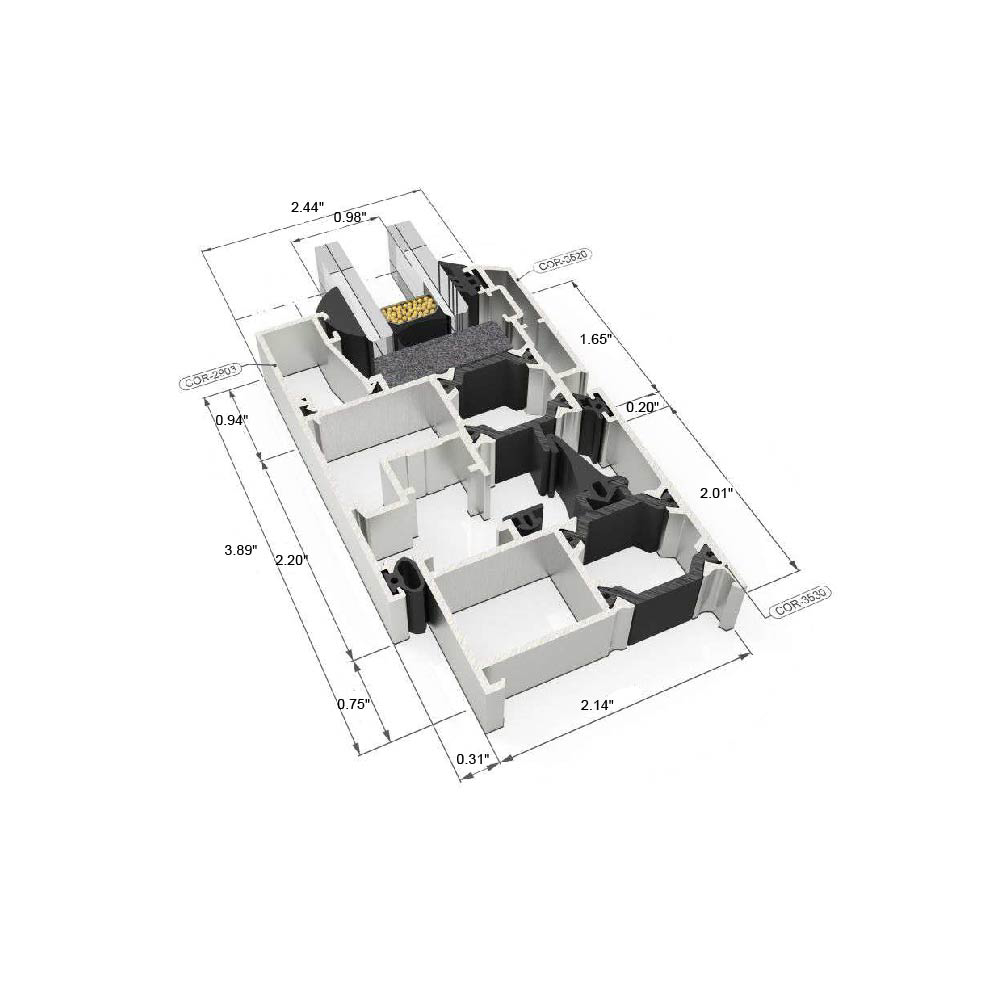

» Sightlines
Frame 2.13"
Sash 2.44"

» Profile thickness
Window 0.059"
Door 0.067"

» Polyamide strip length
0.94"

» Maximum sash dimensions
Width (L) 59.06"
Height (H) 102.36"

» Maximum sash weight
120 kg

» Aesthetic possibilities
Sash: Curved or chamfered / Bead: Straight or curved

Consult maximum weight and dimensions according to typologies.

» Finishes
Possibility of dual color systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized

Test Center

» Transmittance
Uw ≥ 1.2 (W/m²K)
Consult maximum weight and dimensions according to typologies

» Acoustic insulation
Rw up to 46 dB

» Air permeability
(EN 12207) Class 4

» Water tightness
(EN 12208) Class 9A

» Wind resistance
(EN 12210) Class C4

Reference test 48.43" × 58.27" / 2 sashes
