cortizo

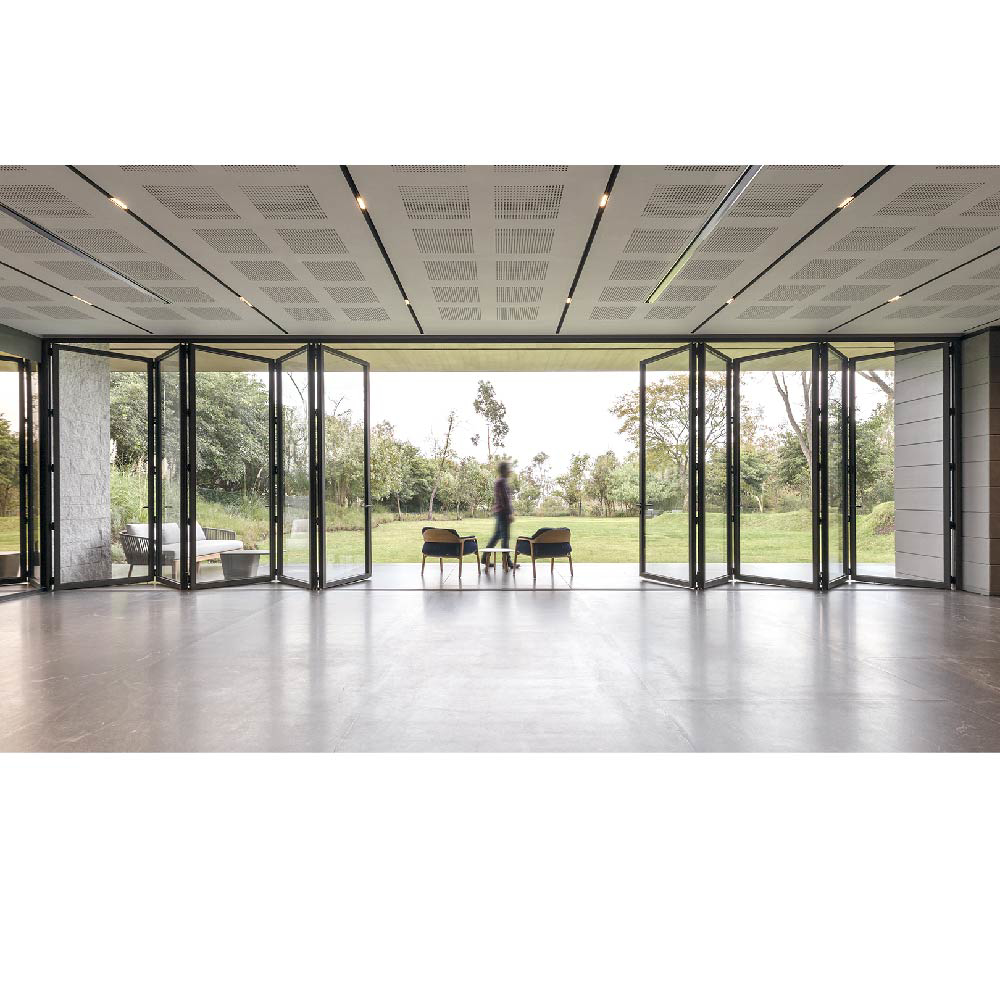

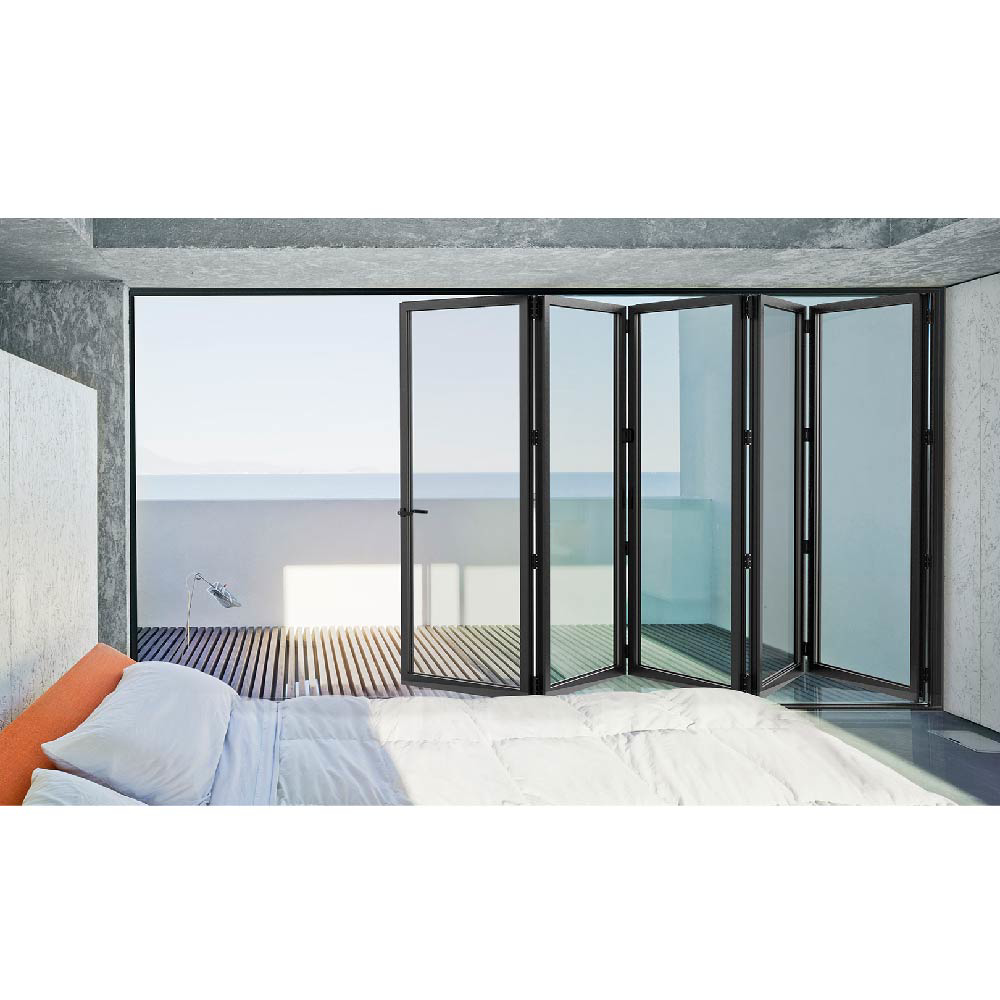

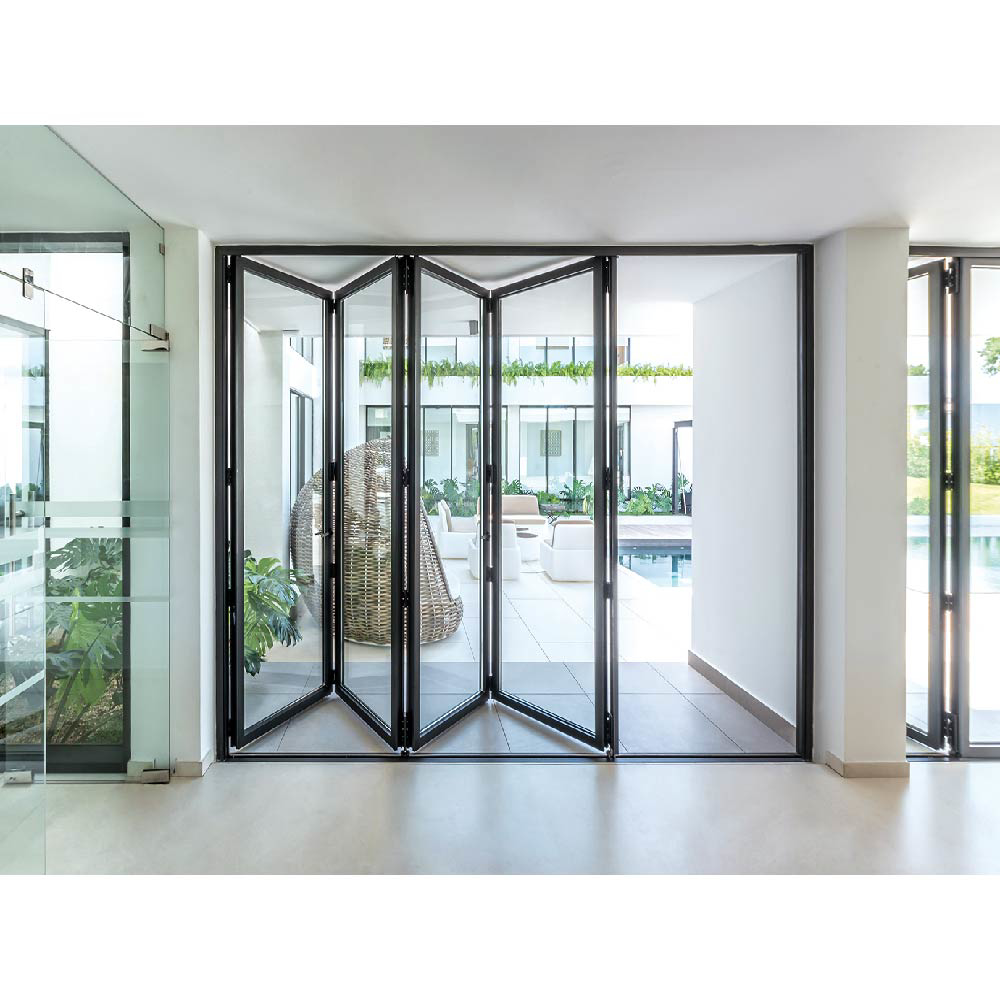

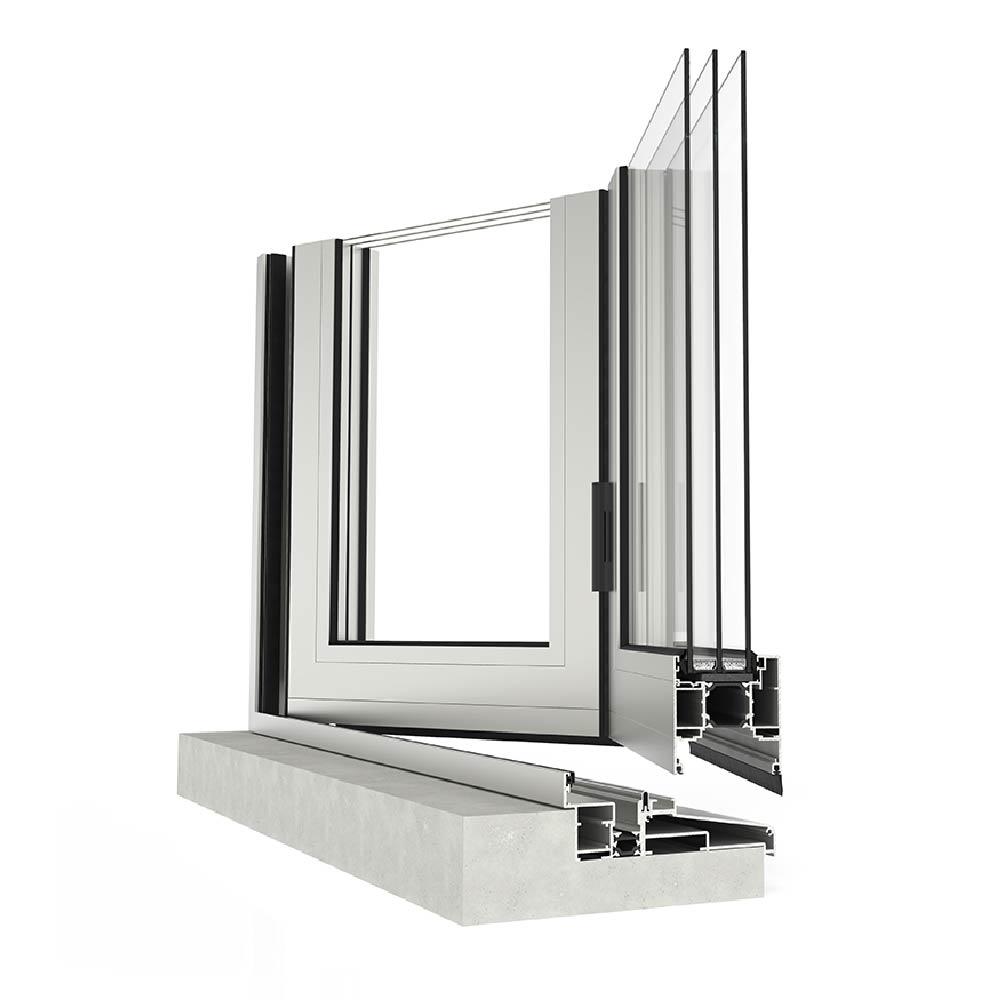

Bi-fold Door

For pricing information please send a request.

» Up to 14 sashes: inward and outward opening » Possibility of either even or odd number of sashes » Option to embed the lower frame in the floor

Shipping: Free

est. delivery:

Description

Technical Data

» Maximum glazing thickness

1.77"
» Opening possibilities
Interior: Up to 14 sashes
Exterior: Up to 14 sashes

Possibility of corner sash at 90º without mullion

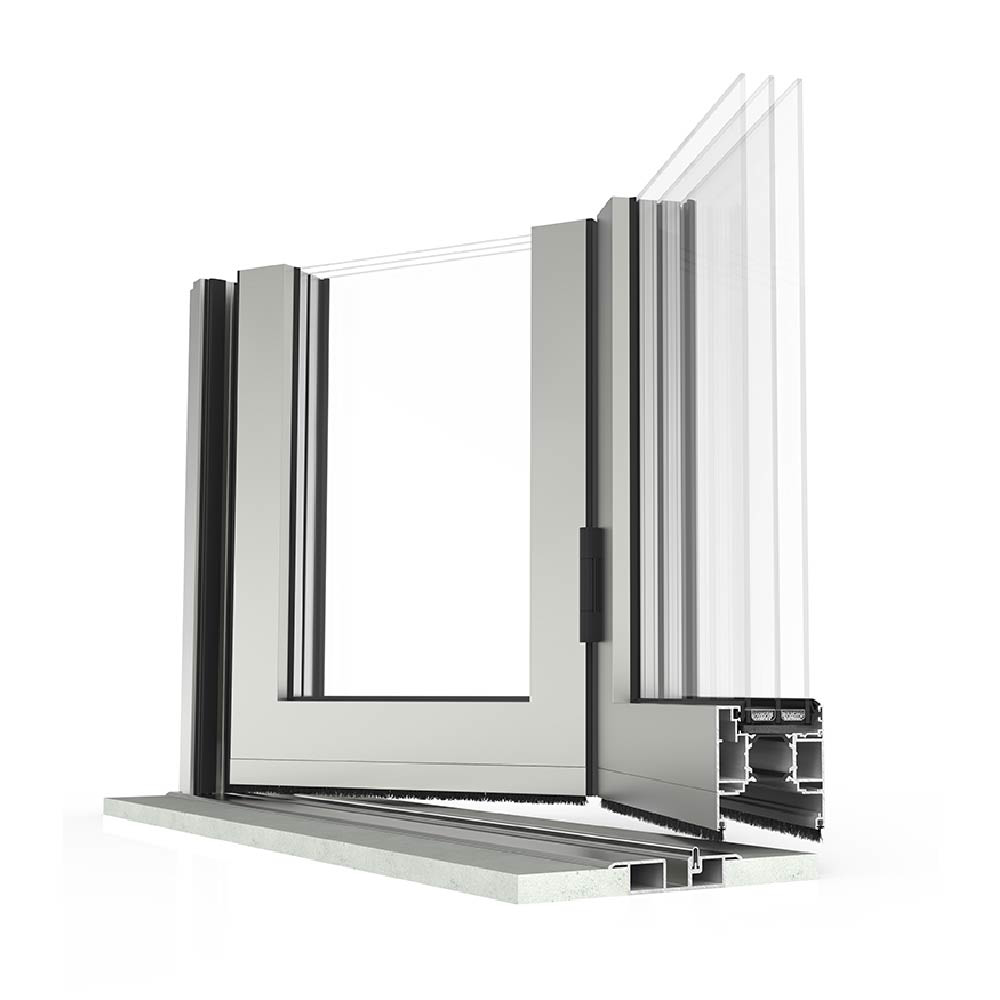

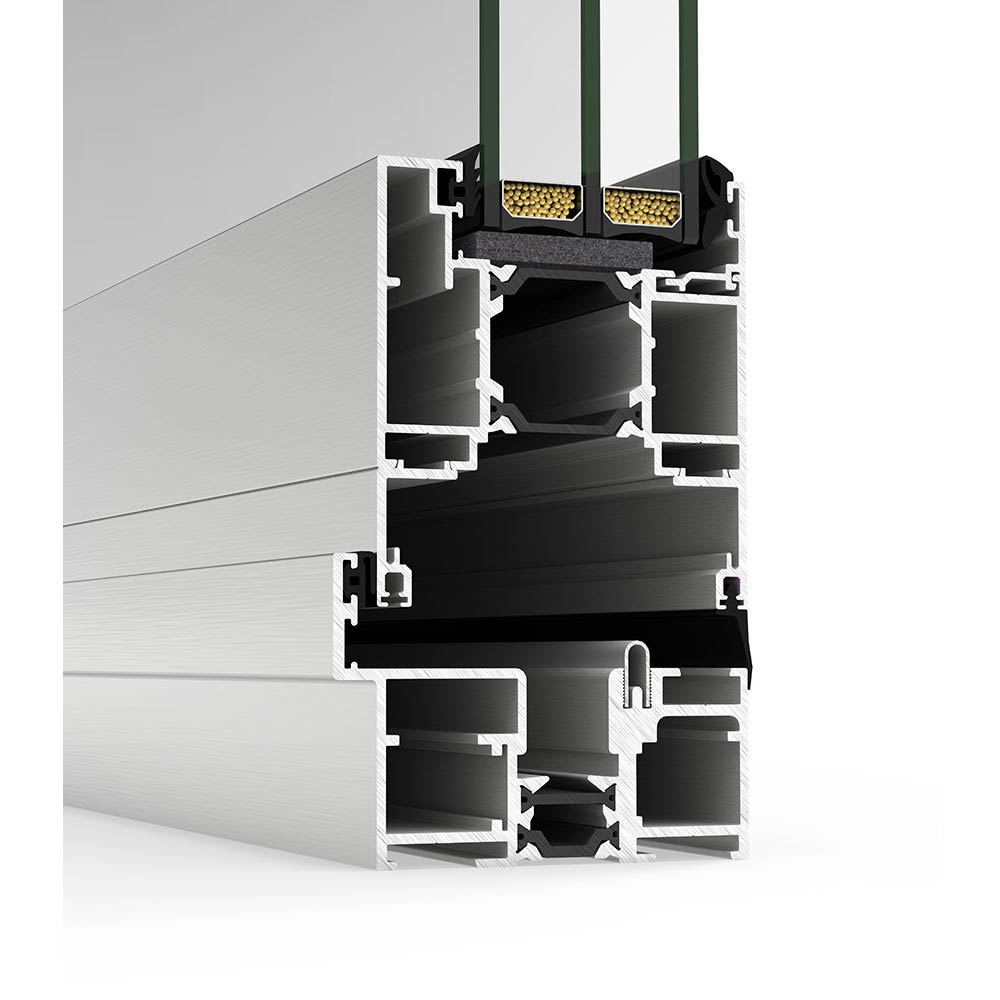

» Sections
Frame – 2.87"/ Sash – 2.87"
» Profile thickness

Door 0.071"
» Polyamide strip length

Frame 0.79" / Sash 1.18"
» Maximum dimensions/sash

Width (L) = 47.24"
Height (H) = 118.11"
» Maximum weight/sash

120 kg

Please consult regarding maximum weight and dimensions for other opening types

» Finishes

Possibility of dual color systems

Color powder coating (RAL, mottled and rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized

Test Center

» Transmittance

Uw ≥ 0.97 (W/m²K)

Please consult typology, dimensions and glazing
» Air permeability

(EN 12207) CLASS 4
» Water tightness

(EN 12208) CLASS 9A
» Wind resistance

(EN 12210) CLASS A3
Reference test 106.30" × 99.61" 3 sashes
» Security Test

(PAS 24): Passed
Reference test 106.26" × 99.09" 3 sashes.
Set-up: 330
