COR Galicia Alum-Timber Hinged Window and Door Systems

For pricing information please send a request.

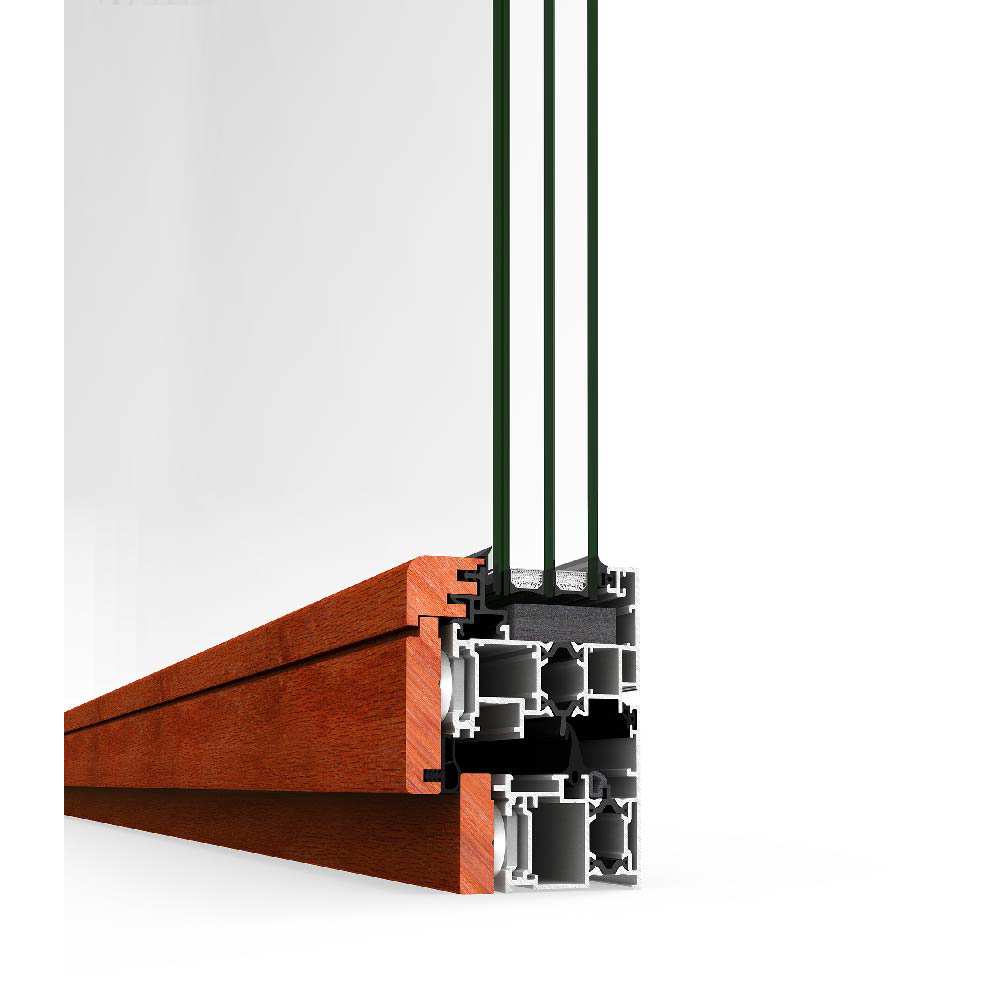

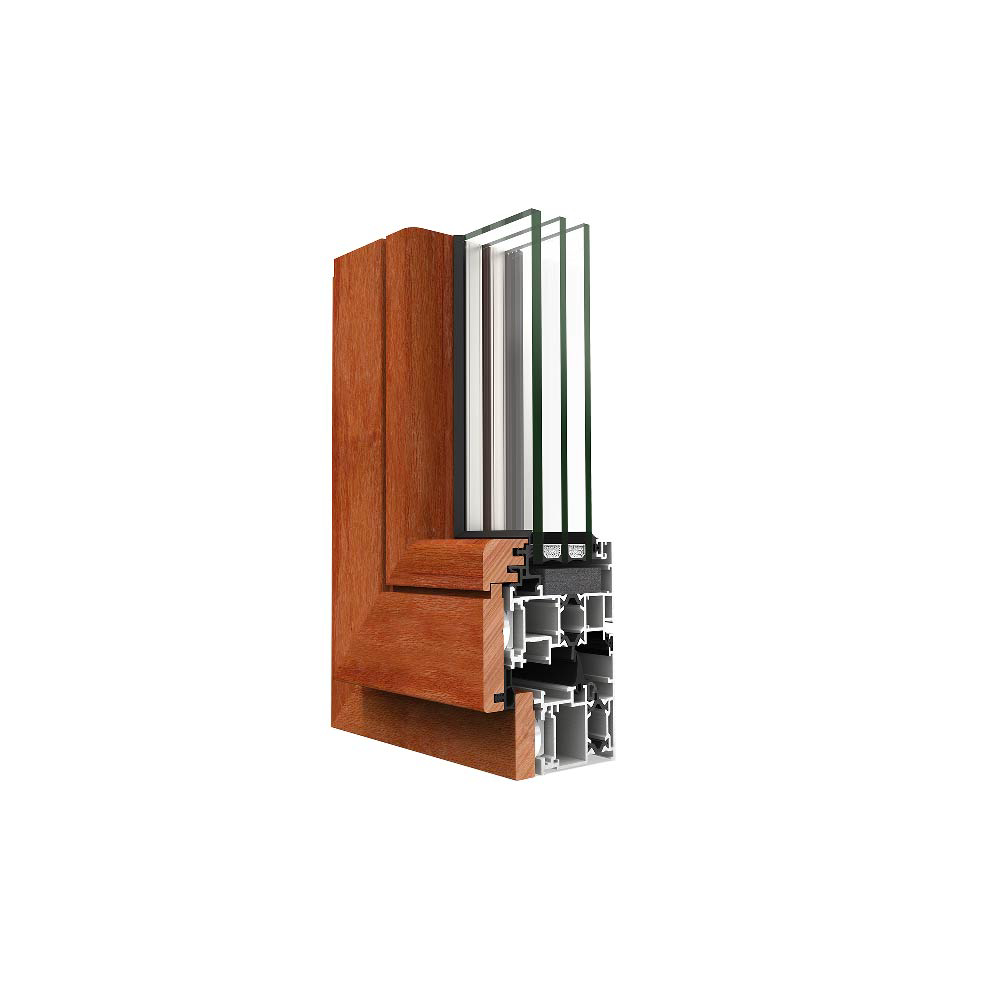

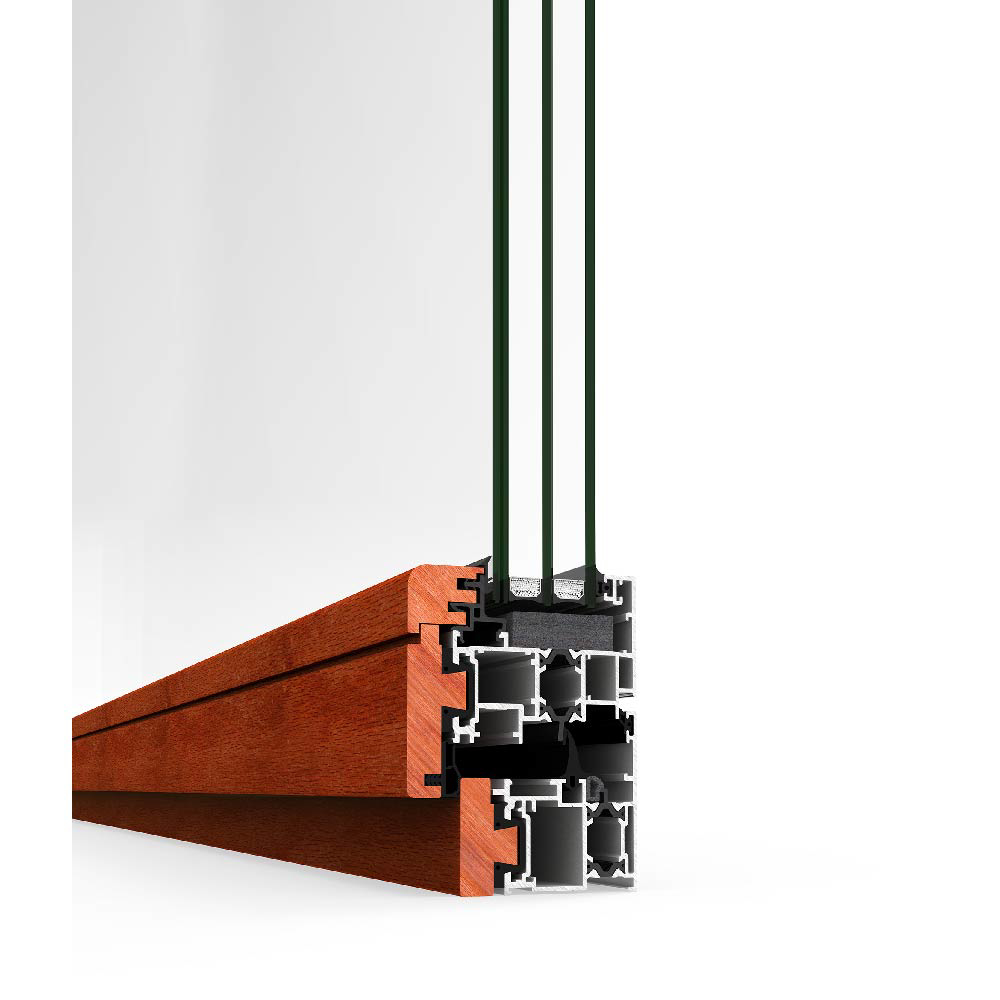

Thermally broken mixed system that combines an external aluminum profile and its excellent performance with the warmth and design that an internal timber profile provides. The extensive range of CORTIZO powder coating or anodizing finishes, any of them may be selected for the surface treatment of the external face.

Shipping: Free

est. delivery:

Description
Downloads

Description

On the other hand, the internal face is available in American oak, sapelly, mellis pine and other timber options available on request, all of them treated with a transparent, satin, dissolvent free ecological varnish.

Possibilities
» Security hardware

Technical Data

» Glazing
Sash: Max. 1.57", Min. 0.71"
Fixed light: Max. 1.18", Min. 0.31"

» Opening possibilities

Inward opening
Side hung
Tilt & turn
Tilt & parallel
Bottom hung

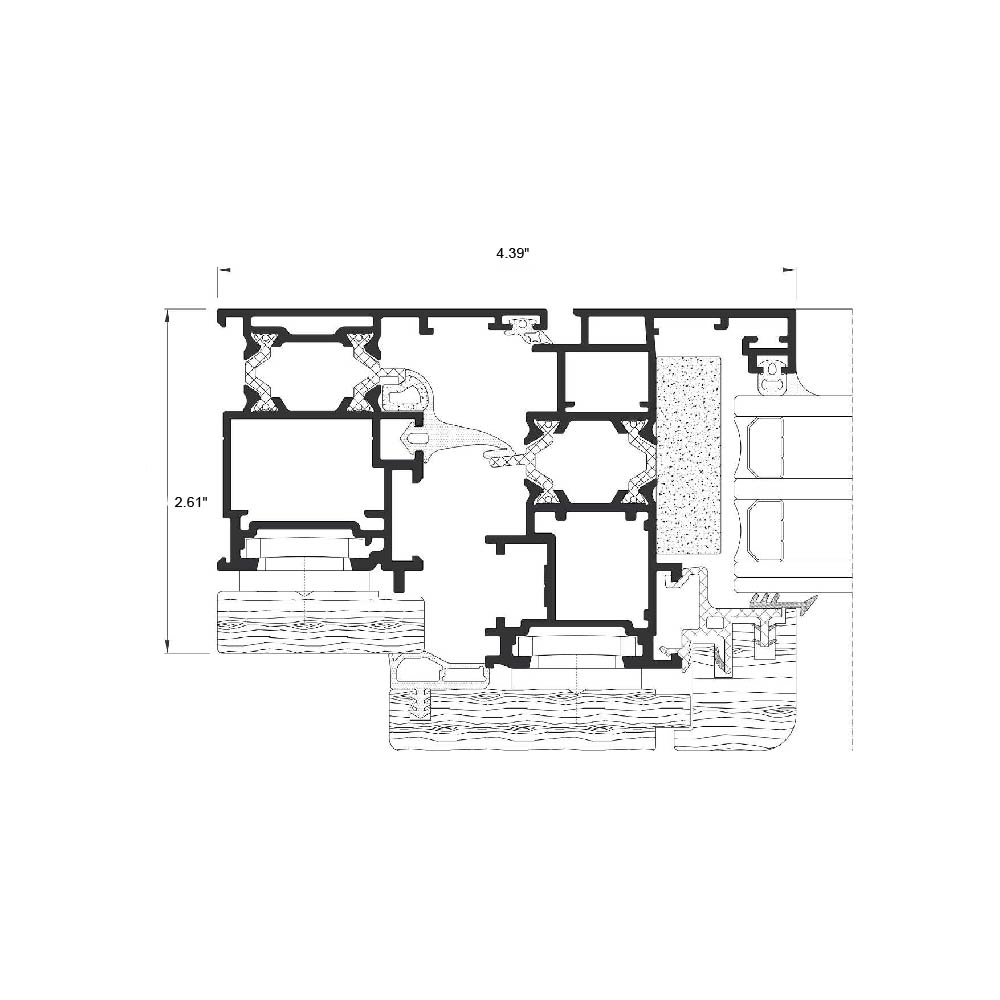

» Sightlines
Frame 0.58"
Sash 0.63"

» Profile thickness
Window 0.059"
Door 0.063"

» Polyamide strip length

Frame 0.58"
Sash 0.63"

» Maximum sash dimensions
Width (L) 55.12"
Height (H) 94.49"

» Maximum sash weight
100 kg

» Aesthetic possibilities
Sash: Straight / Bead: Curved

Consult maximum weight and dimensions according to typologies.

» Finishes
Possibility of dual color systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized

Test Center

» Transmittance
Uw ≥ 1.1 (W/m^²K)
Consult maximum weight and dimensions according to typologies

» Acoustic insulation
Rw up to 40 dB

» Air permeability
(EN 12207) Class 4

» Water tightness
(EN 12208) Class E1050

» Wind resistance
(EN 12210) Class C5

Reference test 48.43" × 58.27" / 2 sashes
