COR 70 Industrial TB Hinged Window and Door Systems

For pricing information please send a request.

This 2.76" frame depth hinged system offers great thermal and acoustic performance combined with very simple fabrication, which is why it has become one of the most demanded series for aluminum windows, doors and balconies.

Shipping: Free

est. delivery:

Description
Downloads

Description

Possibilities
» Security hardware
» Concealed hinges
» Concealed drainage
» Concealed handle
» Blind integrated glazing bead

Technical Data

» Glazing
Max. 2.48"
Min. 0.24"

» Opening possibilities
Inward opening

Side hung

Tilt & turn

Parallel Sliding

Tilt only

Outward opening
Side hung
Top hung
Pivoting on horizontal or vertical axis

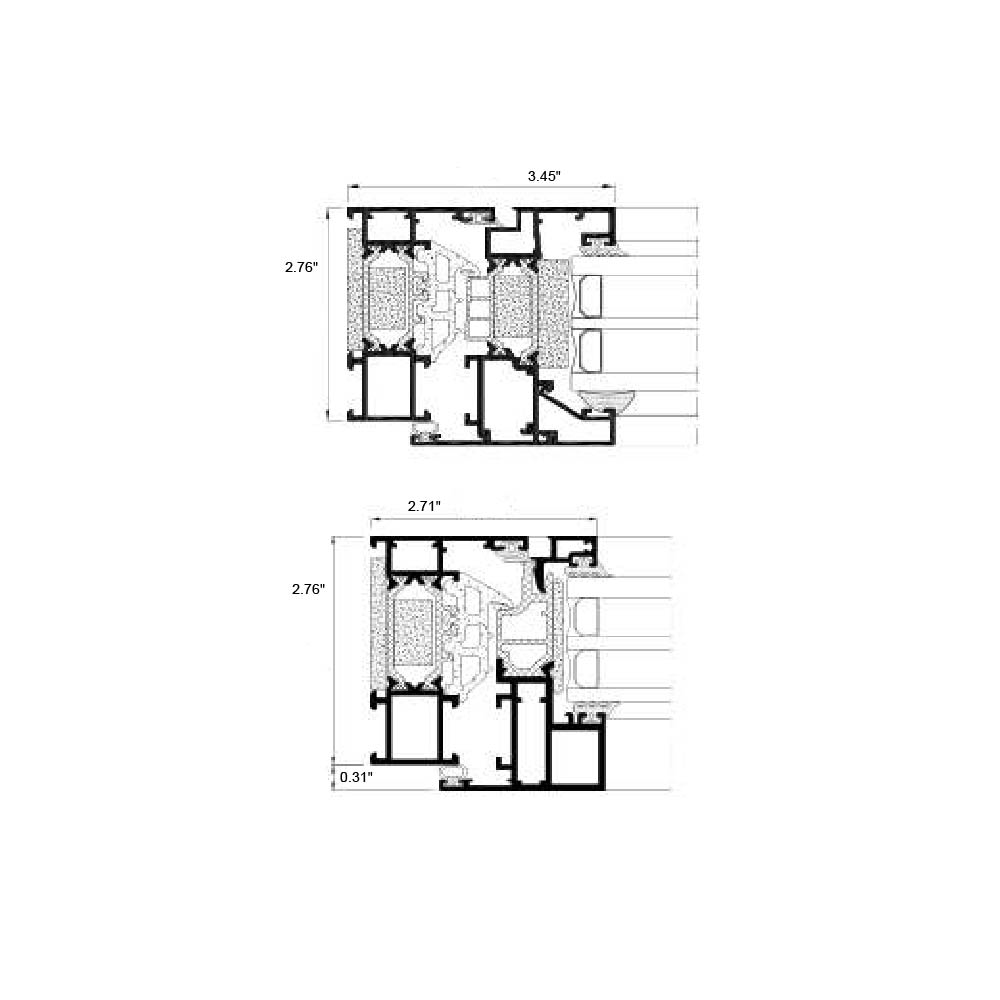

» Sightlines
Frame 2.76"
Sash 3.07"

» Profile thickness
Cor 70 Industrial:
Window 0.059"
Door 0.067"
Cor 70 Industrial - Half-Hidden Sash

Window 0.075"

» Polyamide strip length
1.26" - 1.38"

» Maximum sash dimensions
Width (L) 59.06"
Height (H) 102.36"

» Maximum sash weight
160 kg

» Aesthetic possibilities
Sash: Straight / Bead: Straight or curved

Consult maximum weight and dimensions according to typologies.

» Finishes
Possibility of dual color systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized

Test Center

» Transmittance
Cor 70 Industrial: Uw ≥ 0,76 (W/m²K)
Cor 70 Industrial - Half-Hidden Sash: Uw ≥ 0,86 (W/m²K)
Consult maximum weight and dimensions according to typologies

» Acoustic insulation
Rw up to 44 dB

» Air permeability
(EN 12207) Class 4

» Water tightness
(EN 12208) Class E1800

» Wind resistance
(EN 12210) Class C5

» Burglar resistance
Grade RC2 (WK2)

» Security test PAS24
Passed

» CSTB Laboratory DTA Certification
Avis technique - Ref. 6/17-2363

» ATG Certification
Ref. 3204

Reference test 48.43" x 58.27" / 2 sashes
Security test: Reference test 43.31" x 94.49" / 1 sash
Burglar test 57.87" x 99.21" / 1 sash with EVO SECURITY hardware
