cortizo

Equity Facade Systems

For pricing information please send a request.

» Internal seen section of just 0.71" » Minimalist and slim look » Its mullions and transoms offer, as a result of their joint, uniform union on the outside face of the curtain wall

Shipping: Free

est. delivery:

Description
Downloads

Description

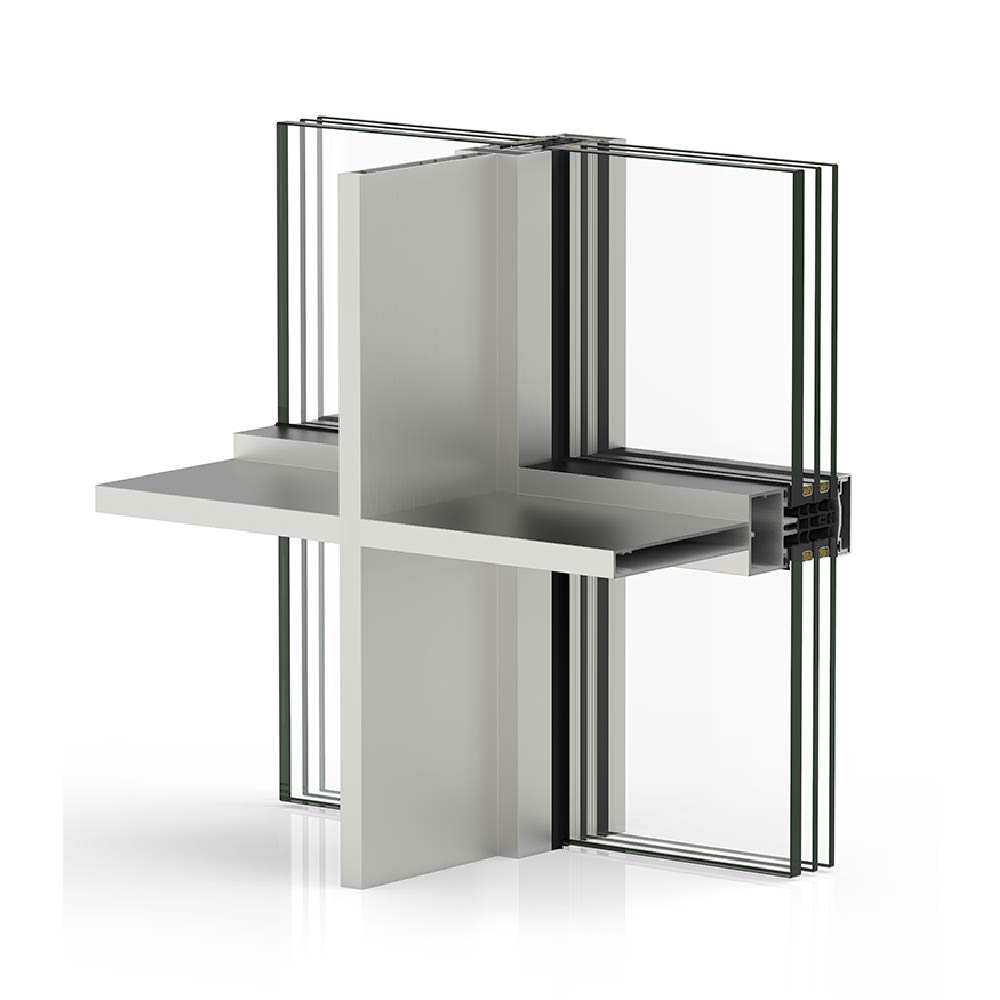

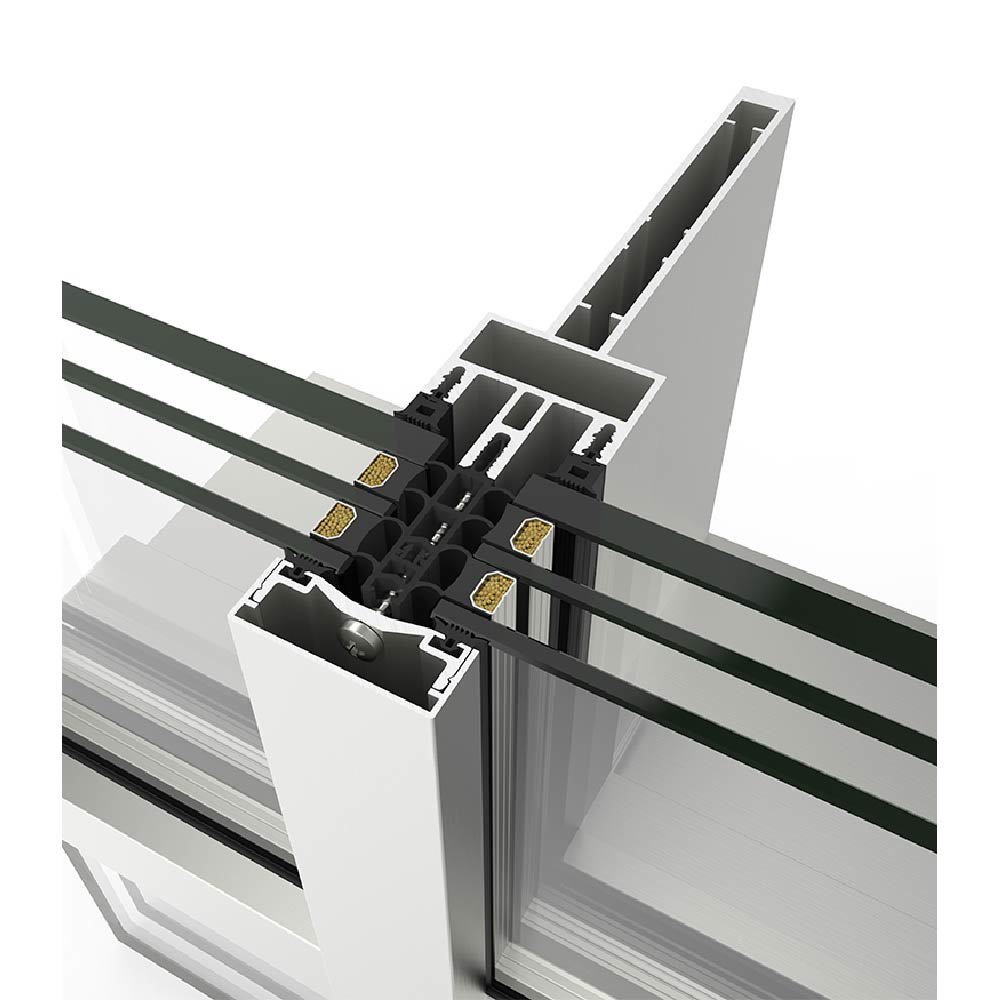

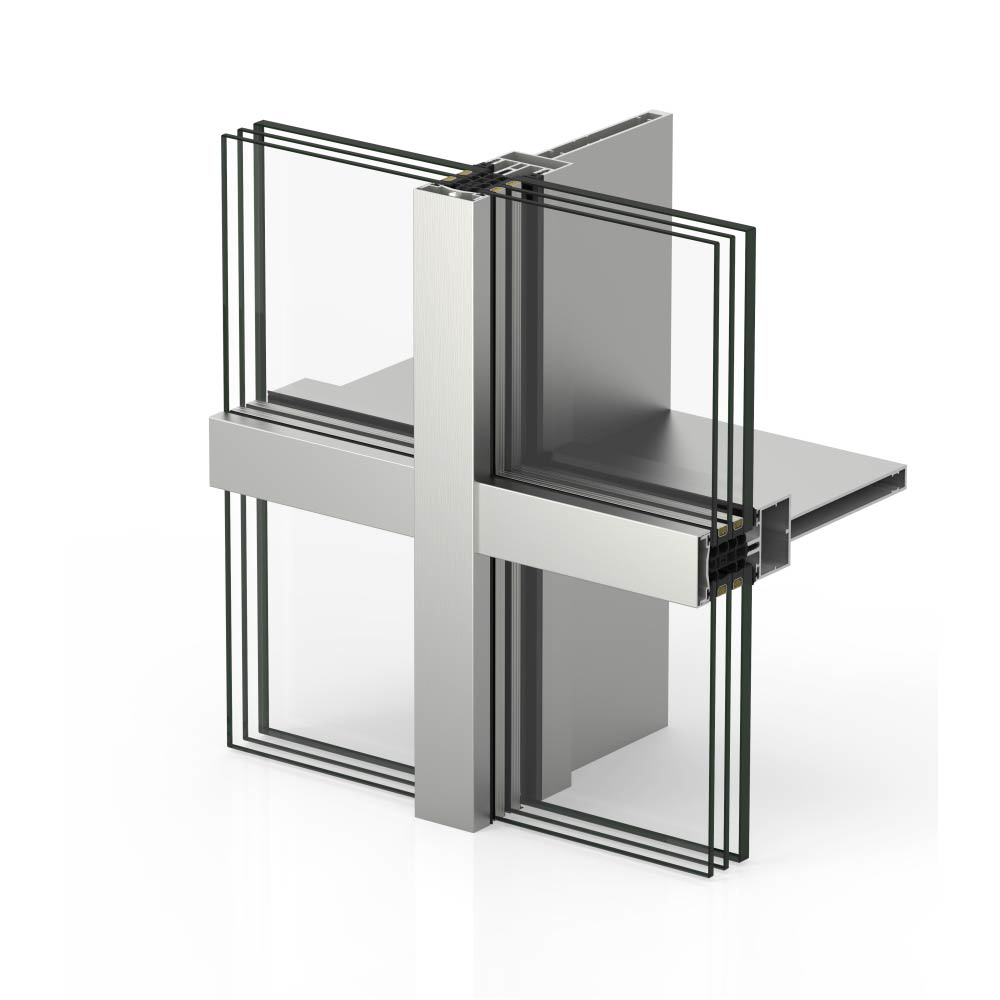

» The combination of mullions and transoms is compatible with the following systems: TP 52, SG 52, TPH 52, TPV 52, ST 52 and SST 52

Technical Data

» Glazing

Maximum glazing 2.52"

Minimum glazing 0.24"

*Consult us for greater thicknesses

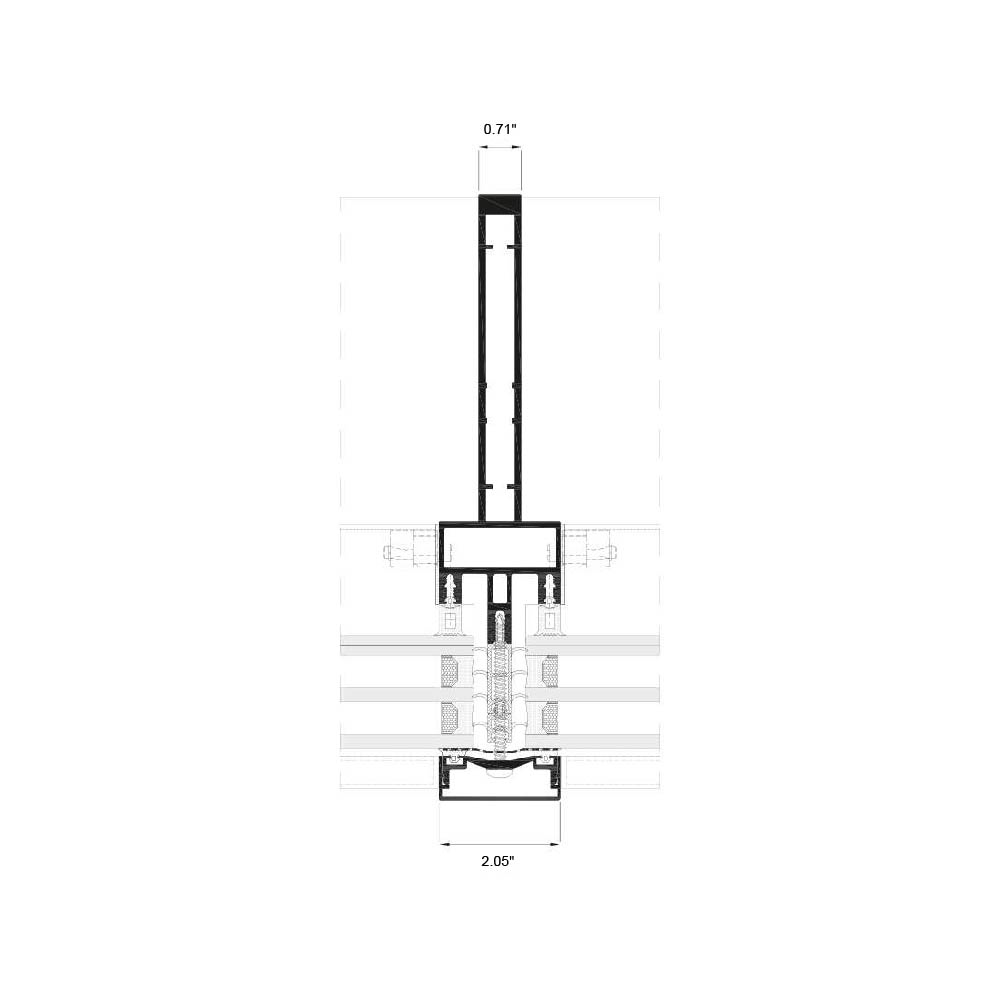

» Sections

Mullion 0.71"

Transom 0.71"

» Profile thickness

Mullion 0.10"

Transom 0.10"

» Polyamide strip length

0.24", 0.47" & 1.18" stackable profiles
» Covers

3.35" deep elliptical cover

H shape cover, 1.34" deep

Rectangular cover: 0.55", 0.75", 3.94" & 5.71" deep

Pyramid shape cover, 6.10"deep
» Finishes

Powder coating / Anodized

Test Center

» Transmittance

Ucw from 0.6 (W/m²K)

Please consult dimensions and glazing
